Model: ACON LUMINO Series (Louvers)

Lumino-1x14Lumino-1x14Lumino-1x28Lumino-2x14
Lumino-4x14Lumino-4x14

Aesthetic good looks, Inimitable features, matchless range. ACON LUMINO Series has it all, providing you with an amazing range of choices, is customized for better illumination through an enhanced spread.

The contemporary, yet so very classic and compact design of louvers perfectly suits every style of the modern exteriors. The highest quality imported moulds give LUMINO the perfect finish and glossy contours.

Models
Model Consumption Substitute For Energy Saving Dimension (lxbxh) in mm

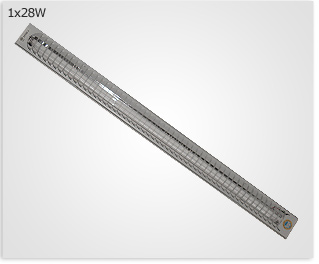

ACON 1x28W T5 4 ft. 28W Conventional Tube-Light 50% 1220 x 89 x 95

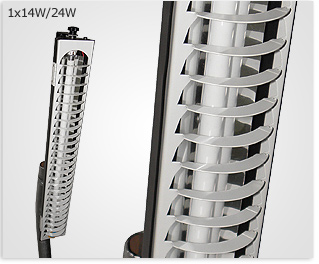

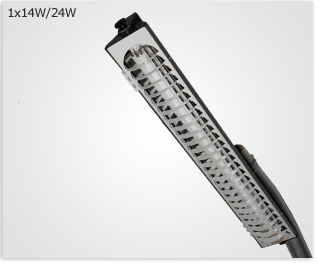

ACON 1x14W T5 LSL 14W CFL Bulb, Tube-Light 50% 610 x 89 x 89

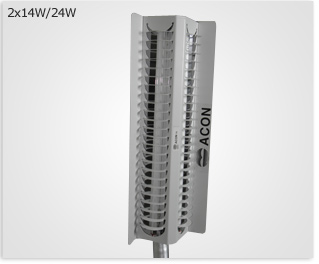

ACON 2x14W T5 LSL 28W 70W HPSV/MH 60% 580 x 230 x 75

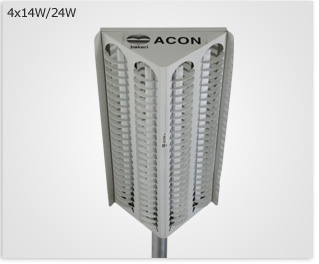

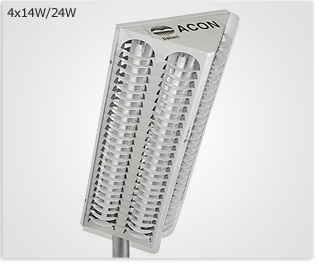

ACON 4x14W T5 LSL 56W 125W HPMV 60% 585 x 320 x 140
ACON 1x24W T5 LSL 24W CFL Bulb, Tube-Light 56% 610 x 89 x 89
ACON 2x24W T5 LSL 48W 70W HPSV/MH 50% 580 x 230 x 75
ACON 4x24W T5 LSL 96W 150W HPSV/MH 50% 585 x 320 x 140
  • Features
    • 50-60% Energy Saving
      Highly Energy Efficient
    • Superior Lighting & Aesthetic good looks
      Patented Design
    • Accompanied with ACON Electronic Ballast
      Protection against excessive main voltage fluctuations
    • MS Louvers Body
      Uniform distribution of light
    • System Protection facilities
      Longer life of lamp by 50%
    • Weather Proof Luminary
      No accumulation of dust & insects
    • 2 YEARS GUARANTEE
      Zero Maintenance
  • Technical Specifications
    • Parameter ACON LUMINO Series
      Fixture Body Patented Aluminum body with MS louvers to dissipate heat
      Street Light Fixture Confirming to IS 13022 Part 5 Sec. 3
      Operating Voltage 230 VAC
      Mains Frequency 50 Hz
      Durable Voltage Range 90-450 VAC
      Power Factor > 0.95
      Harmonics (THD) < 30%
      EMI / RFI As per EN 55015
      Over Voltage Cut-Off 270-300 VAC
      Protection against neutral fault YES
      Protection against accidental contacts with live parts as per IS 13021 YES
      Number of Ballasts Separate Ballast for each lamp
      Brand: ACON
      Lamp European Make
      Lumen > 100 lumen per Watt
      Life > 5 Years
      Guarantee 2 YEARS
  • Optional Features:
    • Power Factor > 0.98
    • Harmonics (THD) < 10 %
  • Application
    • Major City Roads
    • Highways & Expressways
    • Bridges & Flyovers
    • Junctions & Roundabouts
    • Industrial Areas
    • Parks & Gardens
  • Installation
    • Mounting brackets for quick and easy installation
    • Pole Height – 7 to 9 meters
    • For a distance of up to 25 meters or 30 meters zigzag from between two consecutive poles
