Outdoor Lighting



Model: ACON RADIANCE Series (Acrylic)

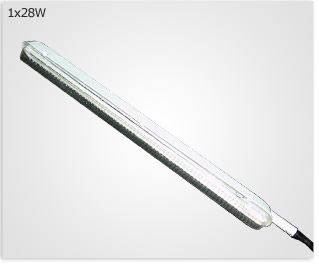

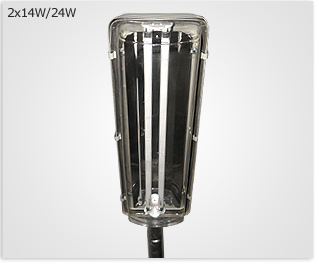

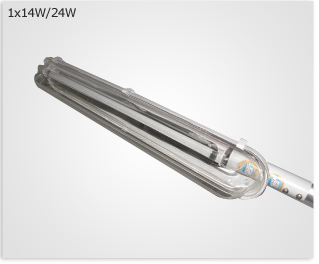

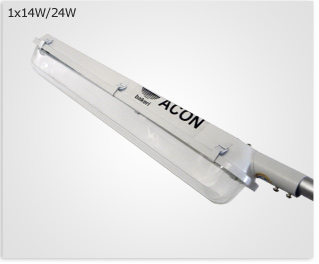

Radiance-1x14Radiance-1x14Radiance-1x28Radiance-2x14

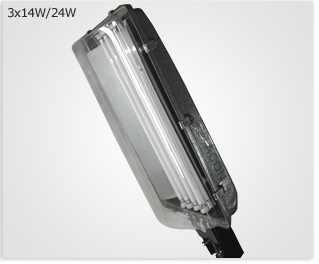

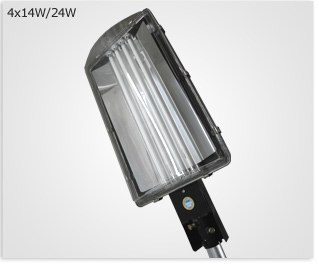

Radiance-3x14Radiance-3x14

Suveg Electronics understands the issues associated with road lighting and offers the experience and the solutions to create a safe comfortable environment for all road users. The energy efficient Radiance range comes with High quality imported Aluminum anodized reflector sheet for an enhanced light output.

Models
Model Consumption Substitute For Energy Saving Dimension (lxbxh) in mm
ACON 1x28W T5 4 ft. Retrofit 28W Conventional Tube-Light 50% 1360 x 115 x 115
ACON 1x14W T5 ASL 14W CFL Bulb, Tube-Light 40% 760 x 102 x 108
ACON 2x14W T5 ASL 28W 40W Tube-Light 50% 685 x 185 x 102
ACON 3x14W T5 ASL 42W 70W   HPSV/MH 50% 800 x 380 x 150
ACON 4x14W T5 ASL 56W 125W HPMV 55% 800 x 380 x 150
ACON 5x14W T5 ASL 70W 150W HPSV/MH 60% 800 x 380 x 150
ACON 1x24W T5 ASL 24W CFL Bulb, Tube-Light 55% 760 x 102 x 108
ACON 2x24W T5 ASL 48W 70W HPSV/MH 45% 685 x 185 x 102
ACON 3x24W T5 ASL 72W 125W HPMV 50% 800 x 380 x 150
ACON 4x24W T5 ASL 96W 150W HPSV/MH 50% 800 x 380 x 150
ACON 5x24W T5 ASL 120W 250W HPSV/MH 60% 800 x 380 x 150
  • Features
    • 45-60% Energy Saving
      Highly Energy Efficient
    • Imported Aluminum Anodized Reflector
      Reflectivity > 85 % & Low Iridescence
    • Accompanied with ACON Electronic Ballast
      Protection against excessive main voltage fluctuations
    • System Protection facilities
      Longer life of lamp by 50%
    • Weather Proof Acrylic Luminary
      No accumulation of dust & insects
    • 2 YEARS GUARANTEE
      Zero Maintenance
  • Technical Specifications
    • Parameter ACON LUMINO Series
      Fixture Body Aluminum Body with Acrylic Cover
      Street Light Fixture Confirming to IS 13022 Part 5 Sec. 3
      Ingress Protection Confirming to IP 54
      Operating Voltage 230 VAC
      Mains Frequency 50 Hz
      Durable Voltage Range 90-450 VAC
      Power Factor > 0.95
      Harmonics (THD) < 30%
      EMI / RFI As per EN 55015
      Over Voltage Cut-Off 270-300 VAC
      Protection against neutral fault YES
      Reflector Made of imported anodized aluminum sheet
      Protection against accidental contacts with live parts as per IS 13021 YES
      No. of Ballasts Separate Ballast for each lamp
      Brand: ACON
      Lamp European Make
      Lumen > 100 lumen per Watt
      Life > 5 Years
      Guarantee 2 YEARS
  • Optional Features:
    • Power Factor > 0.98
    • Harmonics (THD) < 10 %
  • Application
    • Major City Roads
    • Highways & Expressways
    • Bridges & Flyovers
    • Junctions & Roundabouts
    • Industrial Areas
    • Parks & Gardens
  • Installation
    • Mounting Side Entry for quick and easy installation
    • Pole Height – 7 to 9 meters
    • For a distance of up to 20 meters or 30 meters zigzag from between two consecutive poles
