Electronic Ballast



Model: ACON T5 / T8 / T12 ELECTRONIC BALLAST

Electronic BallastElectronic BallastElectronic BallastElectronic Ballast

At Suveg, we understand that an electronic ballast is the heart of any energy saving fluorescent lighting fixture.

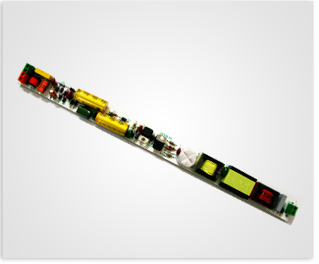

ACON Electronic ballast uses solid state electronic circuitry to provide the proper starting and operating electrical condition to power fluorescent lamps.

We have carefully understood the prerequisites of electronic ballast for use in hostile conditions & mastered the art of making Electronic Ballasts that are durable, highly energy efficient, and have high Power Factor, low THD, good EMI/RFI filtration, end of tube life protection circuitry, over voltage cut off facility, capacity to withstand neutral fault condition for higher efficiency & superior lighting.

Models
Model Lamp Type Substitute For Energy Saving Dimension (lxbxh) in mm

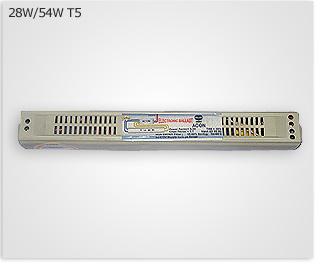

ACON 28W/54W LTHD-10 / ECO MTHD-30 T5 Copper Choke 50% 240 x 30 x 25

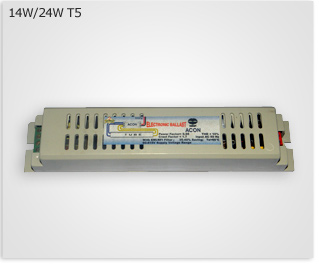

ACON 14W/24W LTHD-10 / ECO MTHD-30 T5 Copper Choke 50% 240 x 30 x 25

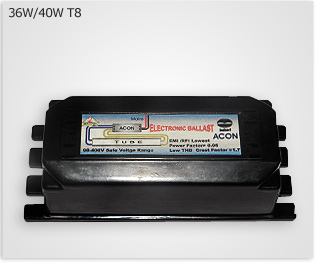

ACON 36W/40W LTHD-10 / ECO MTHD-30 T8 / T12 Copper Choke 35% 127 x 51 x 30
ACON 55W/65W LTHD-10 / ECO MTHD-30 T8 / T12 Copper Choke 35% 127 x 51 x 30
  • Features
    • ACON has proved itself to be the most durable and reliable
      ELECTRONIC BALLAST
    • 50% Energy Saving
      Highly Energy Efficient
    • Power Factor > 0.99 & THD < 10%
      - Very High P.F. & Low Harmonics
    • Protection against Over Voltage, Live Parts & Neutral Fault Condition
      Longer life, Safe & Reliable
    • System protected against excessive main voltage fluctuations
      Most Durable
    • Lamp Current Crest Factor < 1.7
      Very Low lumen depreciation
    • All tests as per IS 13021 part 1 & 2, EN 55015 & IEC 60081
      Best Quality Ballast & Lamp
    • 2 YEARS GUARANTEE
      Zero Maintenance
  • Technical Specifications
    • Parameter ACON Electronic Ballast
      LTHD-10 ECO-MTHD-30
      Rated Voltage 220 / 240 V 220 / 240 V
      Mains Frequency 50 Hz 50 Hz
      Power Factor > 0.99 > 0.95
      Harmonics < 10 % as per
      EN 61000-3-2
      < 30 %
      Durable Voltage Range 0 – 600 V 90 – 300 V
      Over Voltage Protection > 270 V -
      Lamp Current Crest Factor < 1.7 < 2
      Conducted & Radiated Emission Within EN 55015 Limit -
      Protection against accidental contacts with live parts as per IS 13021 YES YES
      Protection against Neutral Fault Condition YES YES
      Endurance Test at Tc = 55* C YES YES
      Lumen > 100 lumen per Watt > 90 lumen per Watt
      Life > 20000 Hours > 12000 Hours
      Guarantee (INCLUDING LAMP) 2 Years 1 Years
    •
