Indoor Lighting



Model: ACON DECORATIVE T5 MIRROR OPTIC LUMINARIES – Energy Saving along with eye-catching Aesthetics

Indoor T5 Mirror Optic LuminariesIndoor T5 Mirror Optic LuminariesIndoor T5 Mirror Optic Luminaries

The science and technology of mirrors which, by means of reflecting rays of light, throw immense light.

Highly Energy Efficient decorative mirror optic luminaries for Recessed Mounting in modular matrix ceilings and Surface Mounting for hanging from the ceiling or protruding slightly from it, suitable for T-5 Lamps– Complete with superior lighting & stunning aesthetics

Models
Model Wattage Power Factor Harmonics
ACON 1x28W T5 MOL-10 28W +/- 1 W 0.99 < 10 %

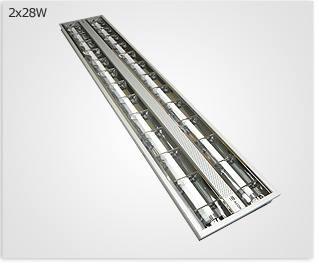

ACON 2x28W T5 MOL-10 56W +/- 2 W 0.99 < 10 %

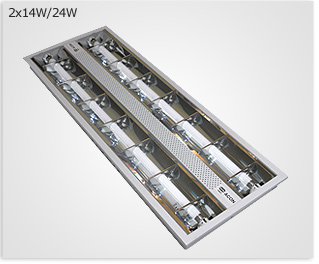

ACON 2x14W T5 MOL-10 28W +/- 1 W 0.99 < 10 %

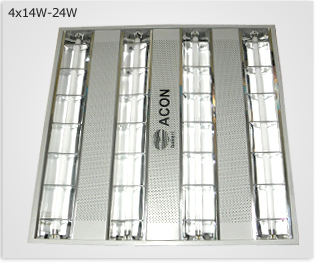

ACON 4x14W T5 MOL-10 56W +/- 2 W 0.99 < 10 %
ACON 2X24W T5 MOL-10 48W +/- 1 W 0.99 < 10 %
ACON 4x24W T5 MOL-10 96W +/- 2 W 0.99 < 10 %
  • Features
    • 50% Energy Saving
      Highly Energy Efficient
    • Superior Lighting and stunning aesthetics
      Highest Light output – 1.5 times more light
    • High Efficiency imported Aluminum anodized sheet
      Minimized glare
    • Mirror optic louvers
      Uniform distribution of light
    • High Power Factor & Low Harmonics
    • Protection facilities -longer life of lamp by 50%
    • 2 YEARS GUARANTEE INCLUDING LAMP on all Models
      Zero Maintenance
  • Application
    • Offices
    • Conference Rooms
    • Reception & Public Service Areas
    • Recreational Areas (Restaurants, Cafeterias)
    • Shops & Boutiques
    • Departmental Stores
    • Other General Areas
  • Installation
    • Recess Mounting
    • Resting on T-bar of false ceiling
    • Suspension via hook or chains
    • Surface Mounting
    • Wall Mounting Arrangement with optional Wall Mounting Bracket
    • Suspension via hook or chains
