Indoor Lighting



Model: ACON T5 Retrofit / Stand Alone– Ultra Slim, Light Weight Assemblies

Indoor T5 - 14 WIndoor T5 - 28 WACON T5 Retrofit / Stand AloneACON T5 Retrofit / Stand Alone

The use of T5 fluorescent technology has become the designer's choice when it comes to lighting, where energy efficiency, light control and aesthetics are priorities.

In juxtaposition, we have carefully understood the prerequisites of electronic ballast for use in hostile conditions & mastered the art of making Electronic Ballasts that are durable, highly energy efficient, and have high Power Factor, low THD, good EMI/RFI filtration, end of tube life protection circuitry, over voltage cut off facility, capacity to withstand neutral fault condition.

Models
Model Length Consumption Dimension (lxbxh) in mm

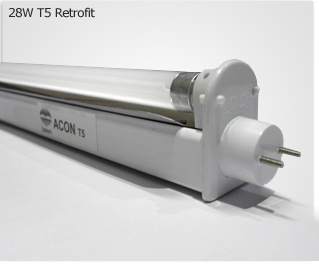

ACON 28W T5 LTHD-10 / MTHD-30 - Retrofit 4' 28W 1220 x 38 x 45

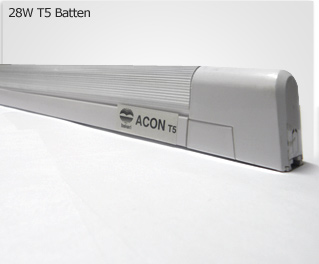

ACON 28W T5 LTHD-10 / MTHD-30 - Stand Alone 4' 28W 1180 x 38 x 45

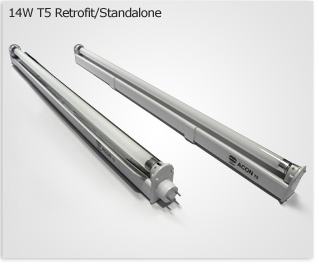

ACON 14W T5 LTHD-10 / MTHD-30 - Retrofit 2' 14W 617 x 38 x 45
ACON 14W T5 LTHD-10 / MTHD-30 - Stand Alone 2' 14W 572 x 38 x 45
All Models available With or Without Reflector
Also available - ACON 54W T5 LTHD-10/MTHD-30
  • Features
    • 70% Energy Saving WITH REFLECTOR
      Enhanced Energy Saving
    • Accompanied with ACON Electronic Ballast
      Most durable and Reliable
    • High Power Factor & Low Harmonics
    • Protection facilities
      Longer life of lamp by 50%
    • System protected against excessive main voltage fluctuations
    • Lamp Current Crest Factor < 1.7
      Very low lumen depreciation
    • No blackening at both ends
      Same light output even after a long usage period
    • 2 YEARS GUARANTEE INCLUDING LAMP on LTHD Models & 1 YEAR on MTHD Models
  • Energy Cost Comparison

    • Energy Cost at the end of 2 years – ACON 28W T5 Tubelight V/S 36/40W Conventional Tube Light

    • Parameter ACON 28W T5 Tube Light Conventional Tube Light
      Wattage Consumption 28 Watts

      55 Watts (36/40W Tube + 15W Choke Consumption)
      Durable Voltage Range 0 – 600 VAC 200 – 240 VAC
      Saving 27W 0W
      Power Factor > 0.99 0.55
      Lux Double Light Output Dim
      Life More than 5 Years 6 Months
      Guarantee 2 Years No Guarantee
    • Energy Consumption of 36/40W tube-light in 2 years Energy Consumption of ACON 28W T5 in 2 years
      55W x 12 Hours x 25 Days x 24 Months / 1000 28W x 12 Hours x 25 Days x 24 Months / 1000
      = 396 units x 5.50 per unit = 202 units x 5.50 per unit
      = 2,178/- = 1,111
      Total Energy Cost Saving by ACON 28W T% in 2 years 2,178 – 1,111
        1,067/-
      + Additional Saving due to ZERO Maintenance (Lamp, Choke, Starter & Labour)
      * Minimum unit cost of 5.50 per unit is taken in above calculation. Different places have different unit rates.
      Higher the unit cost, higher will be the saving.
  • Technical Specifications
    • Parameter Models
      ACON 28W T5 ACON 14W T5
      LTHD-10 ECO-MTHD-30 LTHD-10 ECO-MTHD-30
      Rated Voltage 220 / 240 V 220 / 240 V 220 / 240 V 220 / 240 V
      Mains Frequency 50 Hz 50 Hz 50 Hz 50 Hz
      Total Circuit Power 28 W 28 W 28 W 28 W
      Power Factor > 0.99 > 0.95 > 0.99 > 0.95
      Harmonics

      < 10 % as per

      EN 61000-3-2      		 < 30 %

      < 10 % as per

      EN 61000-3-2      		 < 30 %
      Durable Voltage Range 0 – 600 V 90 – 300 V 0 – 600 V 90 – 300 V
      Over Voltage Protection > 270 V - > 270 V -
      Lamp Current Crest Factor < 1.7 < 2 < 1.7 < 2
      Conducted & Radiated Emission Within EN 55015 Limit - Within EN 55015 Limit -
      Color Co-ordinates Within IEC : 60081 - 2002 Within IEC : 60081 - 2002 Within IEC : 60081 - 2002 Within IEC : 60081 - 2002
      Protection against accidental contacts with live parts as per IS 13021 YES YES YES YES
      Endurance Test at Tc = 55* C YES YES YES YES
      Lumen > 100 lumen per Watt > 90 lumen per Watt > 100 lumen per Watt > 90 lumen per Watt
      Life >20000 Hours > 12000 Hours >20000 Hours > 12000 Hours
      Guarantee (INCLUDING LAMP) 2 Years 1 Years 2 Years 1 Years
      * All Models are available in Retrofit/Stand Alone, With or Without Reflector
  • Application
    • Residences, Offices, Factories & Industries
    • Departmental Stores, Shops, Malls, Super Markets & Recreational zones
    • Airports, Railway Stations, Hospitals, Hotels, Schools & Colleges
  • Installation
    • Retro Fit
    • Remove Existing Lamp
    • Install / Fit the ACON 28W/14W T5 Retrofit in the existing light fixture and give Supply.
    • Standalone
    • Stand Alone Models come with C-Clamps for easy installation with necessary Accessories.
    • Mount the ACON 28W/14W T5 Stand Alone where it gives an aesthetic appeal
