LED Lighting - Street Lighting

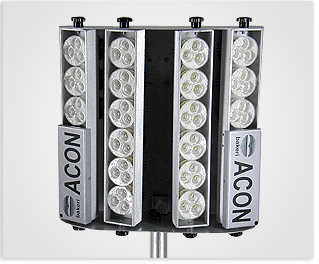

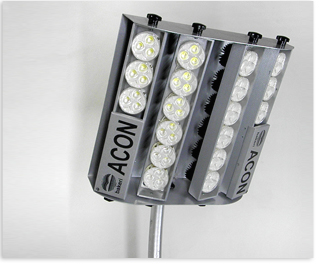

Model: ACON EAGLE EYE LED Fixture

Customize this luminary with stunning precision to cast light only where you want light to be cast. The EAGLE EYE with its retractable channels has an arrangement of focusing the beam pattern in the direction you want. The EAGLE EYE's light engine generates light that is uniform in intensity.

The EAGLE EYE Models are installed at Ministers Bungalows – Internal Roads – Government of Gujarat.

» Learn more about Pupil Lumen Ratio

Models

Model	Substitute For	Energy Saving	Dimension
ACON 25W LED Eagle Eye	70W HPSV / 125W HPMV	70%	Length - 368 mm Breadth - 335 mm Height - 102 mm
ACON 50W LED Eagle Eye	150W HPSV / 250W HPMV	75%
ACON 75W LED Eagle Eye	250W HPSV / 400 HPMV	70%

Features
- 75% Energy Saving
  Highly Energy Efficient
- Specially matched Composite lens for LEDs
  Optimum Spread & focus of Light
- Retractable Channels
  Best directivity & uniformity
- Over 70,000 hours of optimal operational life
  Long Life, No Maintenance
- No Mercury or other Heavy Metals
  Eco-Friendly Luminaire
- Great Visual Efficiency
  Best Clarity & Precision
- Long Life Guranteed
  Zero Maintenance

Technical Specifications

Parameter	ACON EAGLE EYE	Advantages
Operating Voltage	230 VAC	Most Durable
Mains Frequency	50 Hz	Most Durable
Total Circuit Power	75W (Customizable)	Highly Energy Efficient
LEDs	American/European Power LEDs	More Light & Life
LED Driver circuit	Constant current type	Long Life of LEDs
Durable Voltage Range	170 – 270 VAC	Most Durable
Constant Current driver efficiency	80%	Highly Efficient
Casing	Aluminum Die Cast	Efficient Heat Dissipation which leads to longer life of LEDs
Channels	Adjustable	Better Focus & Directivity
Degree	Adjustable	Best Uniformity along the road
Power factor	> 0.98	As per Indian & International Standards
Harmonics (THD)	< 15%	As per Indian & International Standards
Life	> 50,000 Hours	Long Life, No Maintenance

Application
- Major City Roads
- Highways & Expressways
- Bridges & Flyovers
- Junctions & Roundabouts
- Industrial Areas
- Parks & Gardens

Installation
- Mounting Side Entry for quick and easy installation
- Pole Height – 7 to 9 meters
- For a distance for up to 30 meters between two consecutive poles
