LED Lighting - Street Lighting

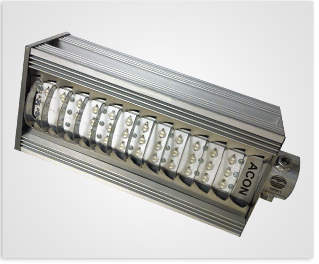

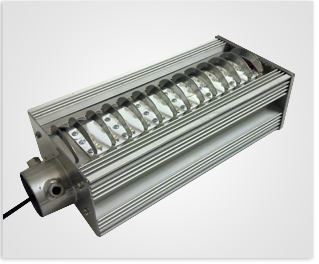

Model: ACON LED LUMINO – SEE TO BELIEVE THE IMPOSING BLEND OF AESTHETICS & TECHNOLOGY

Indoor T5 - 14 WIndoor T5 - 28 W

Some call it an evolutionary leap. For us, it's just the next step. We introduce the latest LED technology with deepest understanding.

Our experience across the world guides our development of LED Lumino Model. We bring you the most advanced technology that is most energy efficient. With over 70,000 hours of optimal operational lifespan, this model ensures perfect uniformity and intensity of light.

The classic and compact design of louvers perfectly suits every style of the modern exteriors.

» Learn more about Pupil Lumen Ratio

Models
Model Substitute For Energy Saving Dimension
ACON 35W LED LUMINO 70W HPSV / 125W HPMV 75% Length   - 335 mm
Breadth - 146 mm
Height   -  102 mm
ACON 55W LED LUMINO 150 HPSV/ 250W HPMV 80%

  • Features
    • 75-80% Energy Saving
      Highly Energy Efficient
    • Superior Lighting & Aesthetic good looks
      Patented Design
    • MS Louvers Body
      Perfect uniformity and intensity of light
    • Over 70,000 hours of optimal operational life
      Long Life, No Maintenance
    • No Mercury or other Heavy Metals
      Eco-Friendly Luminaire
    • Great Visual Efficiency
      Best Clarity & Precision
    • Long Life Guranteed
      Zero Maintenance
  • Technical Specifications
    • Parameter ACON LED LUMINO Advantages
      Operating Voltage 230 VAC Most Durable
      Mains Frequency 50 Hz Most Durable
      Total Circuit Power 60 degree(max) x 120 degree(min) Highly Energy Efficient
      LEDs American/European Power LEDs More Light & Life
      LED Driver circuit  Constant current type Long Life of LEDs
      Durable Voltage Range 170 – 270 VAC Most Durable
      Constant Current driver efficiency 80% Highly Efficient
      Casing Aluminum Die Cast Efficient Heat Dissipation which leads to longer life of LEDs
      Degree 60 degree(max) x 120 degree(min) Best Uniformity along the road
      Power factor > 0.98 As per Indian & International Standards
      Harmonics (THD) < 15% As per Indian & International Standards
      Life > 50,000 Hours Long Life, No Maintenance
  • Application
    • Major City Roads
    • Highways & Expressways
    • Bridges & Flyovers
    • Junctions & Roundabouts
    • Industrial Areas
    • Parks & Gardens
  • Installation
    • Mounting Side Entry for quick and easy installation
    • Pole Height – 7 to 9 meters
    • For a distance for up to 30 meters between two consecutive poles
