LED Lighting

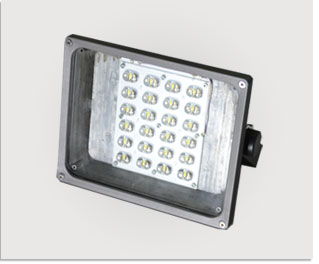

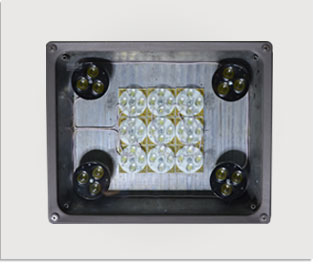

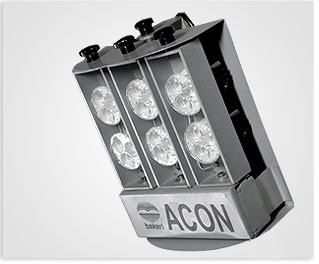

Model: ACON LED Highbay Fixtues
To make the lighting special, we first commit to understand the space.
Lighting is one of the most critical factor for an industrial space. The ACON LED Highbay Fixture with its retractable channels has an arrangement of focusing the beam pattern in the direction you want for superior focus and directivity.
The ACON LED High-bay Fixtures are designed for high-performance, energy efficient and long lasting large-area LED lighting which enhances maximum energy saving and at the same time delivers maximum light output.
Models
| Model | Substitute For | Energy Saving against Sodium | Energy Saving against Mercury | Dimension |
|---|---|---|---|---|
| ACON 25W LED HB | 70W HPSV / 125W HPMV | 70% | 85% | Length - 235 mm Breadth - 200 mm Height - 102 mm |
| ACON 50W LED HB | 150W HPSV / 250W HPMV | 70% | 80% | |
| ACON 75W LED HB | 250W HPSV / 400 HPMV | 75% | 90% |
- Features
- Up to 90% Energy Saving
Highly Energy Efficient - Specially matched Composite lens for LEDs
Optimum Spread & focus of Light - Retractable Channels
Best directivity & uniformity - Covers a vast area
Few Fixtures required - Over 70,000 hours of optimal operational life
Long Life, No Maintenance - No Mercury or other Heavy Metals
Eco-Friendly Luminaire - Great Visual Efficiency
Best Clarity & Precision - 5 YEARS GUARANTEE
Zero Maintenance
- Up to 90% Energy Saving
- Technical Specifications
-
Parameter ACON LED Highbay Advantages Operating Voltage 230 VAC Most Durable Mains Frequency 50 Hz Most Durable Total Circuit Power 25W / 50W / 75W Highly Energy Efficient LEDs American/European Power LEDs More Light & Life LED Driver circuit Constant current type Long Life of LEDs Durable Voltage Range 170 – 270 VAC Most Durable Constant Current driver efficiency 80% Highly Efficient Casing Extruded Aluminum or CRC Sheet, with high thermal conductivity strengthened with external heat sink Efficient Heat Dissipation which leads to longer life of LEDs Channels Adjustable Better Focus & Directivity Degree Adjustable Best Uniformity along the road Power factor > 0.95 As per Indian & International Standards Harmonics (THD) < 30 % As per Indian & International Standards Life > 70,000 Hours Long Life, No Maintenance Guarantee 5 Years Faster Payback
-
- Optional Features
- Power Factor > 0.98
- Harmonics (THD) < 10 %
- Application
- Industrial Areas
- Factories & Godowns
- Power Stations
- Malls
- Exhibition Halls
- Sports Stadiums
- Installation
- Ceiling Mounting Arrangement
- Suspension via hook or chains
