ACON LED Street Lights

Introducing the next generation ACON LED Street Lights – An ideal lighting solution contrived by amalgamating our proficiency in design, optics, electronics & controls.

We bring to you a perfect solution of impeccable lighting along with exceptional energy and cost saving guarantee, designed according to your needs.

ACON LED Street Lights deliver more light and consume 15-50% less electricity than competing street lights.

Led Street LightLed Street LightLed Street LightLed Street LightLed Street LightLed Street LightLed Street Light

» Learn more about LED Revolution in Lighting

Models
Lamp* Subsitute For** Energy Saving Rated Life Hours
20W LED SL 55W / 70W 63% / 76% 107,000
25W LED SL 70W 70% 107,000
35W LED SL 70W 59% 107,000
45W LED SL 70W / 125W 50% / 70% 107,000
60W LED SL 125W / 150W 59% / 66% 107,000
80W LED SL 150W 54% 107,000
90W LED SL 150W / 250W 50% / 68% 107,000
110W LED SL 250W 61% 107,000
125W LED SL 250W 55% 107,000
135W LED SL 250W 52% 107,000
150W LED SL 250W 46% 107,000

* Standard Wattages. Customized wattages also available. Kindly contact Factory
** Depending on the road category & dimensions
IES Files, Test Reports & Technical Catalogue available on request
  • Features
    • Powerful light throw with high power LEDs
      Ensures maximum traffic safety
    • Type II / III / IV asymmetrical distribution
      Uniform light along & across the road
    • High pressure die cast Al housing with sleek construction
      Creates ambience & gives architecture a more authentic look
    • LED life > 107,000 hrs
      Fit & forget module with zero maintenance
    • Environment Friendly Luminaire
      No Mercury or other heavy metals
    • Highly efficient electronic driver with high PF & low THD
      Least disturbance on mains & distribution transformers
    • Protection against hostile environmental conditions
      Long life guaranteed

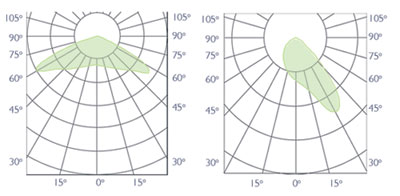

  • Light Control (S/H=4)
      ACON employs specially designed UV protected street light optics with asymmetrical batwing distribution to provide high quality uniform light along & across the road for ensuring traffic safety. ACON incredible light control provides pole spacing up to 4 times its mounting height.

      We recommend the most ideal lighting solution that matches your requirement only after we evaluate the minutest site detail & formulate designs in special lighting softwares.
      Light Control
  • Thermal Management
      ACON efficient thermal management ensures Tj < 75°. Heat is dissipated through an aluminum MPCB which is connected with a built in external heat sink for excellent thermal management.


      •   LED Manufacturer
        LM80 Report        		 ACON Values
        Ambient at LED 85° C <65° C
        Junction at LED 105° C <75° C
        Current 1000 mA 700 mA
        Life Span 107,000 hours > 107,000 hours
  • Technical Specifications
    •   CCT Range
      Color Min Max
      Cool White 5000 K 6500 K
      Neutral White 4000 K 5000 K
      Warm White 2700 K 4000 K
      Parameter ACON LED SL Advantages
      Operating Voltage 230 VAC / 50 Hz Toughened Glass Cover
      Total System Wattage 20W – 150W Highly Energy Efficient
      Input Voltage Range 100-280 VAC Most durable
      Casing Aluminum Die Cast Body with Toughened Glass Cover Efficient heat dissipation long life of LEDs
      Ingress Protection IP 65 Protection from degradation by rain, ice, dust, sand, snow etc.
      LED Lumens/Watt > 130 Lumens/Watt Most efficient LEDs in the industry
      Color Rendering Index (CRI) > 70 Excellent contrast Great visual efficiency
      LED Driver make ACON Most efficient & durable driver
      LED Driver Circuit Constant Current Type Long life of LEDs
      Photometry Asymmetrical Batwing Distribution Best uniformity along & across the road
      Optics Specially designed UV protected optics
      Power Factor > 0.98 Creates least disturbances on mains
      Harmonics (THD) < 10 % Conforming to EN 61000-3-2
      EMI/EMC √ EN 55015 & EN 61547 Compliance
      Short Circuit / HV Surge Protection √ EN 61000-4-5 Compliance
      Uniformity Ratio* > 0.4 As per IS 1944 and Road classification*
      Transverse Ratio* > 0.33
      Luminaire Life 107,000 Hours Zero maintenance
      Installation Side Mounting Quick & Easy Installation
      Tests carried as per LM 79 & relevant Indian & International standards
  • Application
    • Applications
  • Dimensions
    • Product Code Dimensions (in mm) Weight
      kg lbs
      SL20W 384 x 152 x 54 1.45 3.2
      SL25W 384 x 152 x 54 1.45 3.2
      SL35W 335 x 178 x 76 2.04 4.5
      SL45W 470 x 211 x 76 3.52 7.8
      SL60W 455 x 211 x 76 3.52 7.8
      SL80W 533 x 241 x 64 4.32 9.5
      SL90W 533 x 241 x 64 4.32 9.5
      SL110W 663 x 318 x 80 7.65 16.9
      SL125W 663 x 318 x 80 7.65 16.9
      SL135W 663 x 318 x 80 7.65 16.9
      SL150W 663 x 318 x 80 7.65 16.9
  • Installation
    • Mounting Side Entry for quick and easy installation
    • Pole Height – 7 to 9 meters
    • For a distance for up to 30 meters between two consecutive poles
